Widgets

Overview

Widgets are React components that your agents render inside their answers. Instead of describing an order in a paragraph, an agent can show the order — line items, totals and an approve button — as a component that looks like the rest of your product. A widget’s only contract is its props. It has no query, no data fetching and no knowledge of who renders it: the agent chooses the values, the widget draws them. That keeps widgets small, testable and reusable across every agent in the project.

Widgets are project resources, like actions and endpoints. A widget can only be used by agents in the same project, and it is declared in config.yml and deployed on push.

Every widget is two files in your project repository plus one line in config.yml:

widget:
  name: open_orders
  title: Open orders
  description: Shows open orders for a site, with a button to drill into one.
  source: widgets/open_orders_a1b2c3.tsx
  props_source: |
    import { z } from "zod"

    const OpenOrdersProps = z.object({
      site: z.string().describe("Which site the orders belong to"),
      orders: z
        .array(
          z.object({
            reference: z.string().describe("Order reference, e.g. PO-24817"),
            supplier: z.string().describe("Who the order is with"),
            amount: z.string().describe("Formatted total, e.g. $6,674.40"),
          })
        )
        .describe("The open orders, newest first"),
    })

    export default OpenOrdersProps
  props:
    type: object
    properties:
      site: { type: string }
      orders: { type: array }
    required: [site, orders]
  default_props:
    site: Gebze DC-2
    orders:
      - reference: PO-24817
        supplier: Kuzey Metal Supply Ltd.
        amount: $6,674.40

import { Badge, Card, CardContent, CardHeader, CardTitle } from "@datazone/widget-sdk"

export default function OpenOrders({ site, orders }) {
  return (
    <Card size="sm" className="max-w-sm">
      <CardHeader>
        <CardTitle>Open orders</CardTitle>
        <span className="text-xs text-muted-foreground">{site}</span>
      </CardHeader>

      <CardContent className="flex flex-col gap-3">
        {(orders || []).map((order, index) => (
          <div key={index} className="flex items-center justify-between gap-3">
            <div className="flex min-w-0 flex-col">
              <span className="truncate font-medium">{order.reference}</span>
              <span className="truncate text-xs text-muted-foreground">{order.supplier}</span>
            </div>
            <Badge variant="secondary">{order.amount}</Badge>
          </div>
        ))}
      </CardContent>
    </Card>
  )
}

project_name: my-project
project_id: proj_abc123
widgets:
- path: widgets/open_orders_a1b2c3.yml

Project Structure

my-project

config.yml

widgets

open_orders_a1b2c3.yml

open_orders_a1b2c3.tsx

The Declaration

Field	What it is
`name`	Unique within the project. Letters, numbers, dashes and underscores.
`title`	Human readable name, shown in lists.
`description`	Shown to the agent. This is how it decides when the widget is the right one.
`source`	Path to the component file.
`props_source`	The Zod schema you wrote. Kept so the editor can show it back to you.
`props`	JSON Schema compiled from `props_source`. This is what the agent is given.
`default_props`	Values the preview renders with, and a worked example of the shape.

Widgets are authored in the browser, at Project → Settings → Widgets. You have three ways to start:

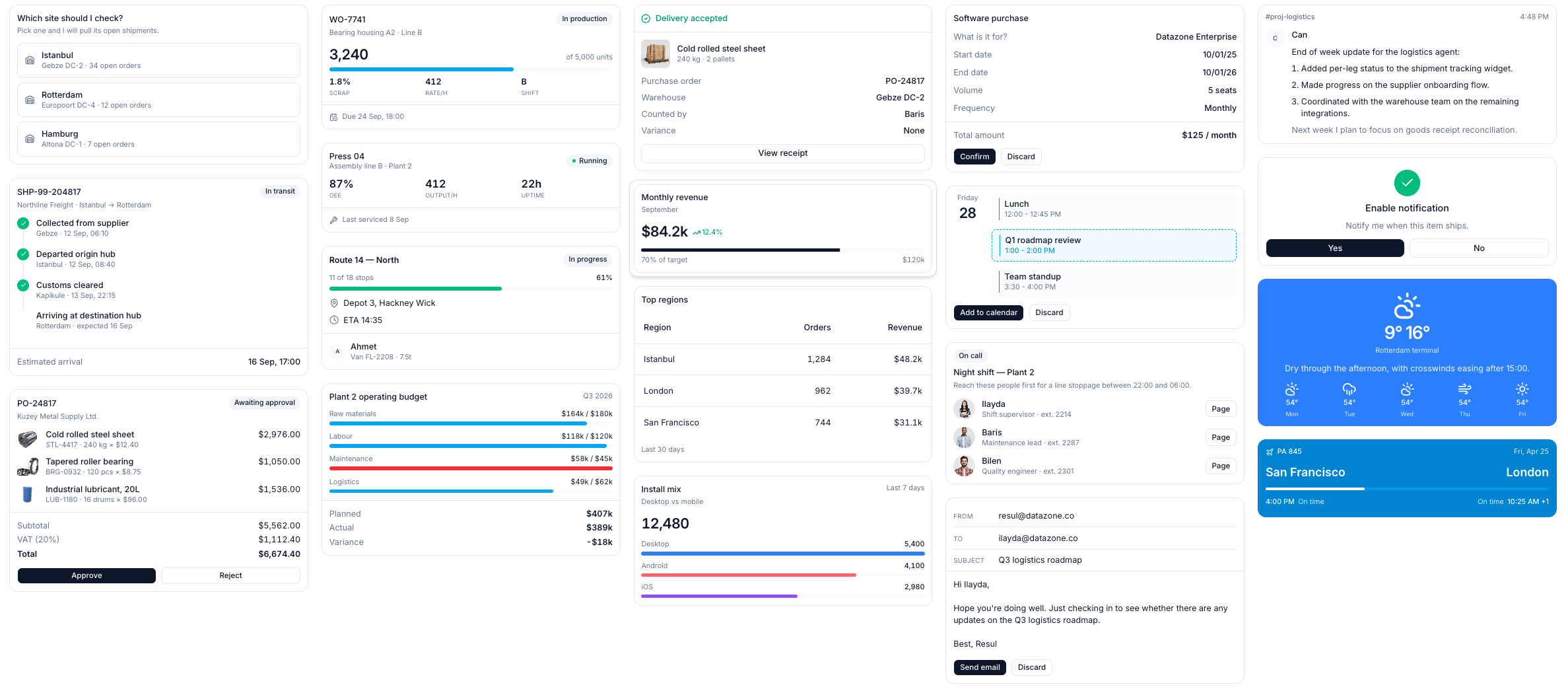

From the gallery — open Gallery for ready-made widgets: purchase orders, shipment tracking, work orders, budget plans and more. Use this template creates an editable copy in your project.
From a prompt — in New widget, describe what it should render and Orion writes the component and its props schema for you.
From scratch — leave the prompt empty and you get a starter component to edit.

The editor gives you the component on the left, its Schema and Default tabs below, and a live preview on the right that re-renders as you type. Saving commits both files to the branch you are on and redeploys the project — so what you edit is your repository, not a database row.

Go to source code in the editor header opens the widget’s YAML in the Code tab, on the same branch.

A widget imports its components from @datazone/widget-sdk:

import { Badge, Button, Card, CardContent, Icon } from "@datazone/widget-sdk"

Available components:


Layout	`Card`, `CardHeader`, `CardTitle`, `CardDescription`, `CardContent`, `CardFooter`, `Separator`
Content	`Badge`, `Button`, `Progress`, `Skeleton`, `Icon`
People	`Avatar`, `AvatarImage`, `AvatarFallback`
Tables	`Table`, `TableHeader`, `TableHead`, `TableBody`, `TableRow`, `TableCell`

Icon renders any Lucide icon by name — <Icon name="package" className="size-4" /> — so you never need icon imports of your own. Styling is Tailwind classes, the same ones the product uses, which is what keeps widgets looking like Datazone.

The SDK is deliberately closed. A widget cannot import from npm, reach the network, or touch the platform’s data layer — it renders the props it is given, and nothing else. Anything a widget should display has to arrive as a prop.

Stick to common Tailwind utilities. Styles are generated when the product is built, and your widget’s source is not part of that build — a very unusual utility class may simply have no effect. For dynamic values such as a bar width, use an inline style instead of an arbitrary class.

Props and the Schema

You write the props schema in Zod, and Datazone compiles it to JSON Schema — the format the agent is given, the same one tool calling uses.

import { z } from "zod"

const OpenOrdersProps = z.object({
  site: z.string().describe("Which site the orders belong to"),
  orders: z.array(Order).describe("The open orders, newest first"),
})

export default OpenOrdersProps

Two rules:

The schema file must export default a Zod schema.
Use .describe() on every field. The descriptions travel to the agent and are the main thing it has to go on when choosing values. A schema without them still validates, but the agent guesses.

Props the agent sends are validated before rendering. If they do not satisfy the schema, the user sees an error instead of a broken component.

Letting an Agent Use It

A widget is not available to an agent until you allow it, under Agent → Widgets. Only widgets from the same project can be allowed. Once allowed, the agent is told the widget’s id, description and props schema, and renders one by emitting a fenced block in its answer:

```widget
{"widget_id": "6512f1a9c4b2e8d3a7f09b14", "props": {"site": "Gebze DC-2", "orders": []}}
```

You never write that block yourself — the agent does, and Datazone replaces it with the rendered component. The allowlist is enforced on the server, so an agent cannot render a widget it was not given, and an embedded viewer never needs widget permissions of their own.

Interactive Widgets

A widget can answer back. Give any Button an onClickAction and clicking it sends a message to the conversation as if the user had typed it:

import { Button, Card, CardContent, CardHeader, CardTitle } from "@datazone/widget-sdk"

export default function SitePicker({ title, options }) {
  return (
    <Card size="sm" className="max-w-sm">
      <CardHeader>
        <CardTitle>{title}</CardTitle>
      </CardHeader>
      <CardContent className="flex flex-col gap-2">
        {(options || []).map((option, index) => (
          <Button
            key={index}
            variant="outline"
            className="w-full justify-start"
            onClickAction={{ type: "send_message", message: option }}
          >
            {option}
          </Button>
        ))}
      </CardContent>
    </Card>
  )
}

Ask “which site should I check?”, show three sites, and the user picks one instead of typing it. The agent receives "Rotterdam" as the next message and carries on.

A widget rendered inside an agent answer

send_message sends only text, and only what the widget declares — nothing a user could not have typed themselves. Buttons disable themselves while an answer is still streaming, so a click cannot queue a second question.

Branches

Widgets are branch-aware, like every other project resource. A widget exists on the branches it has been deployed to, and each branch holds its own version of the component and the declaration. The branch selector on the widget list and in the editor decides which one you are looking at.

Good to Know

Widgets render in the viewer’s browser. Widget code is written by your team and runs for everyone who talks to the agent, including anonymous users of an embedded agent. Review widget source the way you review any other code you ship to a browser.
Keep them presentational. A widget that needs data should receive it as props — from the agent, or from a tool the agent called first.
Default props are a worked example. They render the preview, and they show the agent the shape you expect.
