Resources Overview

​

Overview

Datazone tracks several resource types to help you monitor and manage your platform usage. Understanding these resources is essential for capacity planning, cost management, and setting appropriate Quotas.

​

Resource Summary

​

Resource Types

​

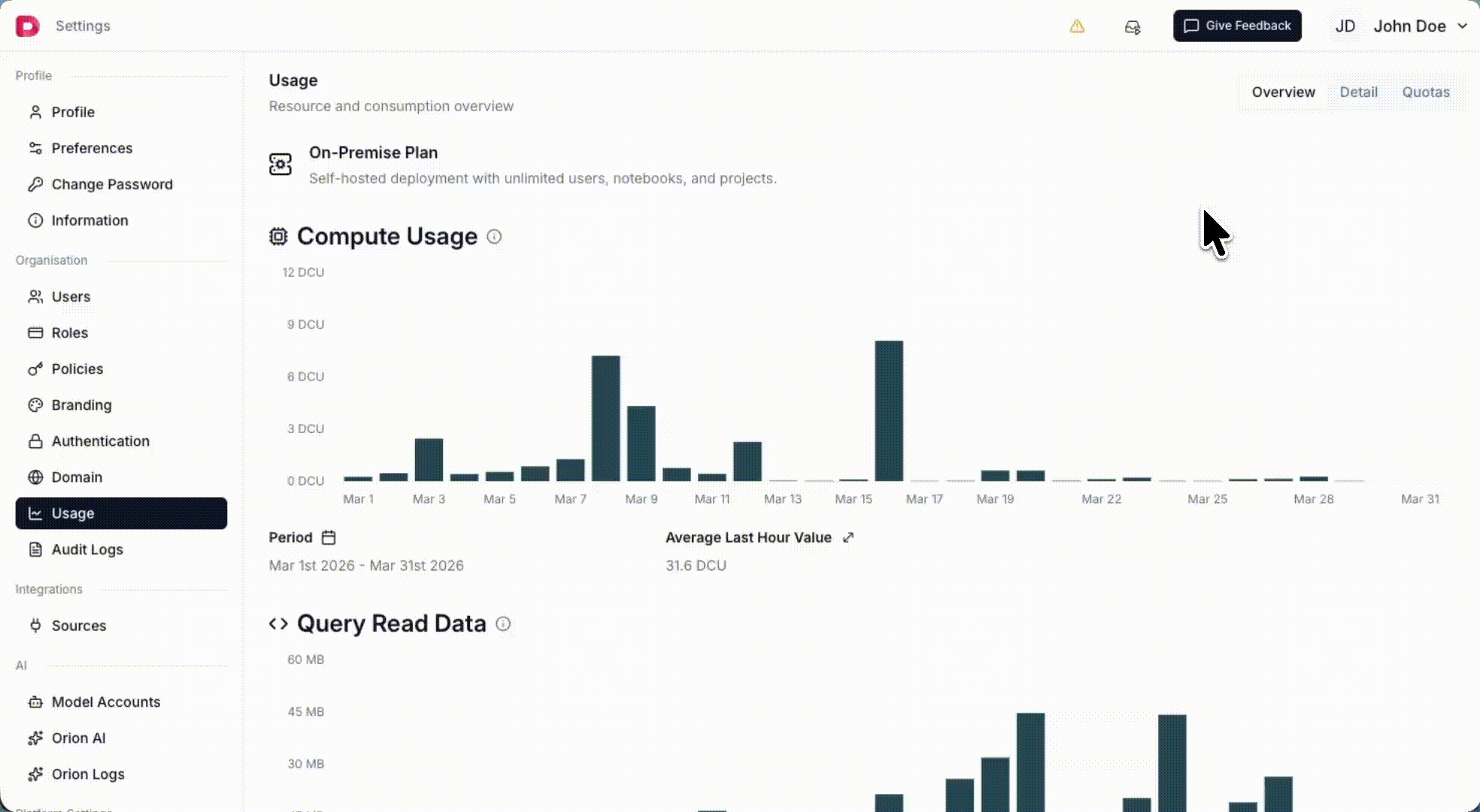

DCU (Datazone Compute Units)

DCU measures compute resources consumed by your workloads. Definition: 1 DCU = 1 vCPU for 1 hour Example:

• An XSMALL instance (2 vCPU, 8GB RAM) running for 1 hour = 2 DCU
• A SMALL instance (4 vCPU, 16GB RAM) running for 30 minutes = 2 DCU
• A MEDIUM instance (8 vCPU, 32GB RAM) running for 15 minutes = 2 DCU

What uses DCU:

• Executions
• Notebook kernels

​

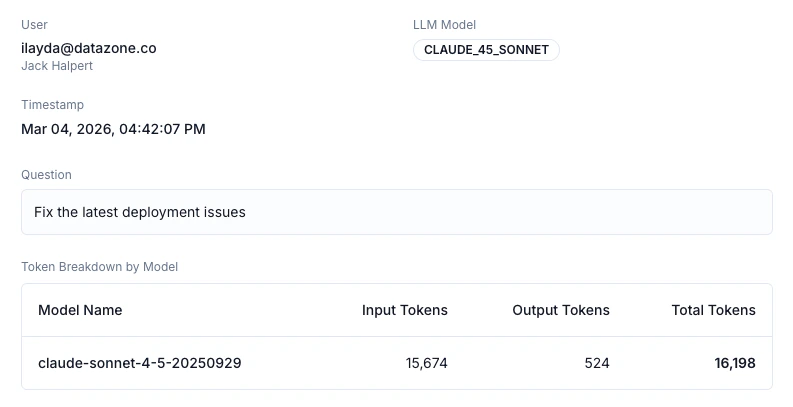

Tokens

Tokens measure the usage of Large Language Models (LLMs) in your Datazone workspace. Definition: Total number of input and output tokens consumed by LLM operations What uses tokens:

• Orion AI Code Assistant
• Intelligent App Chat
• Agent
• Embeddings

Note: Token consumption varies based on the complexity of prompts and length of responses. Longer conversations and detailed outputs consume more tokens.

​

Hot Storage

Hot storage refers to data stored in the relational database (ClickHouse) for fast querying and analysis. Definition: Storage measured in megabytes (MB) What uses hot storage:

• Materialized tables from pipelines
• Transformed datasets
• Cached query results
• Metadata and system tables

Characteristics:

• High-performance SSD storage
• Optimized for fast analytical queries
• More expensive than cold storage
• Best for frequently accessed data

​

Cold Storage

Cold storage refers to data stored in the lakehouse (object storage) for long-term retention and archival. Definition: Storage measured in megabytes (MB) What uses cold storage:

• Raw ingested data
• Historical datasets
• Archived pipeline outputs
• Backup and disaster recovery data

Characteristics:

• Cost-effective object storage
• Suitable for infrequent access
• Longer retrieval times compared to hot storage
• Ideal for compliance and long-term retention

​

Query

Query measures the amount of data processed when executing analytical queries. Definition: Total bytes of data read by queries What affects query usage:

• Number of rows scanned
• Number of columns selected
• Use of filters and aggregations
• Query optimization

Optimization Tips:

• Use column pruning (select only needed columns)
• Apply filters early to reduce data scanned
• Leverage partitioning when available
• Use materialized views for frequently accessed aggregations

​

Actions

Actions measure the number of serverless function executions in your workspace. Definition: Total number of action function calls What uses actions:

• Action endpoints triggered via API
• Agent tools calling actions
• Manual action triggers

How it’s counted: Each time an action function is executed, it counts as 1 action usage, regardless of execution duration or complexity.

​

Resource Planning

For Development Environments:

• Start with smaller compute instances (XSMALL/SMALL)
• Monitor DCU consumption during testing
• Use hot storage sparingly for prototypes

For Production Environments:

• Size compute resources based on workload patterns
• Balance hot vs. cold storage based on access frequency
• Set quotas to prevent unexpected resource consumption
• Review query patterns to optimize data scanning

​

Cost Considerations

Resource usage directly impacts your Datazone costs:

• DCU scales with compute power and duration
• Hot Storage is more expensive per MB than cold storage
• Query costs increase with data scanned (optimize your queries)
• Tokens vary based on LLM usage frequency and complexity
• Actions are counted per execution (each function call)

Understanding your resource patterns helps optimize both performance and cost.
