Intelligent App YAML Reference

This page provides a detailed reference for all attributes available in Intelligent App YAML definitions. Use this as a guide when authoring or reviewing your app configuration files.

Top-Level Structure

app:
  name: string                # App display name
  description: string         # App description
  icon: string                # (Optional) App icon (Lucide icon name)
  config:                     # App configuration (see below)
  layout:                     # Layout definition (see below)
  components:                 # App components (see below)

`config` Section

Attribute	Type	Description
`cache`	bool	Enable/disable caching of query results (default: true)
`cache_ttl`	int	Cache time-to-live in seconds (default: 3600)
`hide_llm`	bool	(Optional) Hide the LLM assistant (Orion AI) in the app UI (default: false)
`hide_insights`	bool	(Optional) Hide the Insights panel in the app UI (default: false)
`hide_filters`	bool	(Optional) Hide the filters panel in the app UI (default: false)
`hide_header`	bool	(Optional) Hide the app header in the UI (default: false)
`chart_export_enabled`	bool	(Optional) Enable export functionality for charts (default: false)
`llm_instruction`	string	(Optional) Custom instruction for the LLM (prompt customization)
`insight_agent_instruction`	string	(Optional) Custom instruction for the insights agent
`style`	object	(Optional) Custom styling configuration (see below)

Style Configuration

Attribute	Type	Description
`theme`	string	UI theme color scheme (default: “default”)
`custom_style_attributes`	object	(Optional) Custom CSS variables for advanced theme customization (see below)

Available themes: “default”, “teal”, “blue”, “green”, “purple”, “orange”, “amber”, “mono”

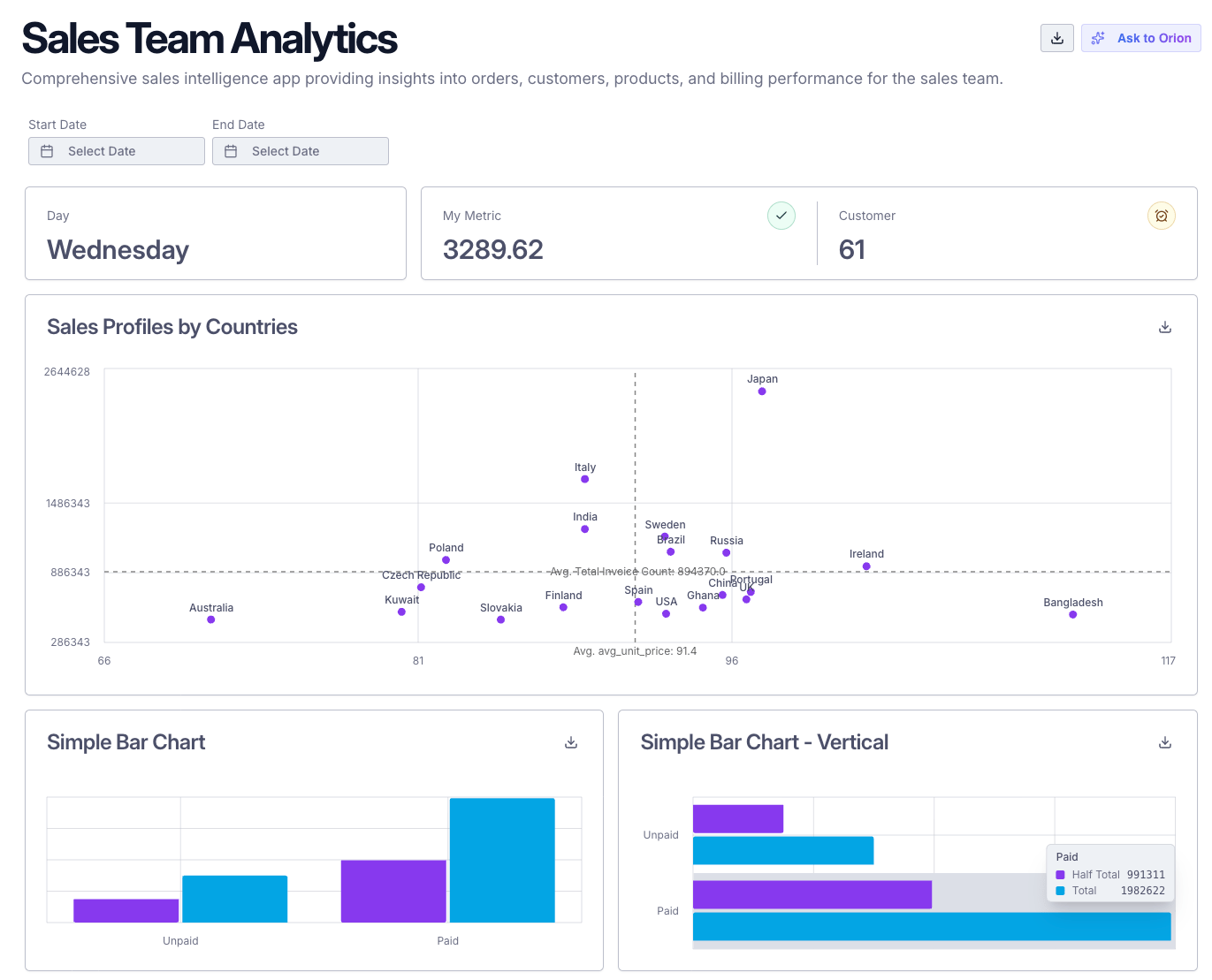

Custom Style Attributes

You can override theme colors using Tailwind CSS variables in HSL format. This allows fine-grained control over your app’s appearance:

style:
  theme: blue
  custom_style_attributes:
    "--background": "220.0000 23.0769% 94.9020%"
    "--foreground": "233.7931 16.0221% 35.4902%"
    "--chart-1": "266.0440 85.0467% 58.0392%"
    "--chart-2": "197.0667 96.5665% 45.6863%"
    "--chart-3": "109.2308 57.6355% 39.8039%"
    "--chart-4": "21.9753 99.1837% 51.9608%"
    "--chart-5": "10.8000 58.8235% 66.6667%"

Common customizable CSS variables:

Variable	Description
`--background`	Main background color
`--foreground`	Main text color
`--chart-1` through `--chart-5`	Chart color palette
`--primary`	Primary accent color
`--secondary`	Secondary accent color
`--muted`	Muted background color
`--accent`	Accent color

Colors must be specified in HSL format without the hsl() wrapper (e.g., “220 23% 95%” instead of “hsl(220, 23%, 95%)”).

`layout` Section

Defines the structure of the app (tabs, items, chart groups).

layout:
  tabs:
    - name: string           # Tab identifier
      title: string          # Tab display title
      filters: [string]      # (Optional) List of filter names
      items:                 # List of layout items (see below)

Layout Items

Attribute	Type	Description
`type`	string	`chart`, `chart-group`, `text`, `table`, `widget`
`name`	string	Unique item name
`span`	int	(Optional) Grid span (width)
`height`	int	(Optional) Height in px
`entities`	list	(For `chart-group`) Nested layout items

`components` Section

Holds the main building blocks: charts, variables, filters, texts, and widgets.

Charts

charts:
  - type: string             # `number`, `radial`, `line`, `bar`, `vertical_bar`, `pie`, `table`, `data_table`, `item_list`, `composed`, `heatmap`, `scatter`, `custom`
    name: string             # Unique chart name
    title: string            # Chart title
    description: string      # (Optional) Description
    query: string            # SQL query (Jinja supported)
    chart_inputs:            # (Optional) Interactive controls for dynamic queries
      - type: string         # Input type: "dropdown"
        name: string         # Variable name accessible in query via Jinja
        label: string        # Display label
        default: string      # Default selected value
        options: [string]    # (Optional) List of static options for dropdown
        options_query: string # (Optional) SQL query to fetch dynamic options (cannot be used with 'options')
    axis:                    # (Optional, for line, bar, vertical_bar, composed, heatmap)
      - name: string         # Axis name (e.g., left, right)
        position: string     # (Optional) Axis position: left, right, top, bottom (default: left)
        format: string       # (Optional) Number format for this axis
        hidden: bool         # (Optional) Whether to hide this axis
    dimensions:              # (Optional) List of dimensions
      - name: string
        label: string
        number_format: string      # (Optional) Number format for numeric dimensions
        table_align: left|right   # (Optional) Table alignment for this dimension
        affected_filter: string   # (Optional, bar/pie only) Filter to update when this dimension is clicked
    metrics:                 # (Optional) List of metrics
      - name: string
        label: string
        format: string            # (Optional) Number format string
        icon: string              # (Optional, number/radial charts only) Lucide icon name (see https://lucide.dev/icons/)
        icon_variant: string      # (Optional, number/radial charts only) One of: "default", "neutral", "success", "warning", "error"
        axis_name: string         # (Optional, for line, bar, vertical_bar, composed) Axis to use for this metric
        composed_type: string     # (Optional, for composed) "line" or "bar"
        submetric_name: string    # (Optional, number/radial charts only) Name of the submetric to display
        submetric_type: string    # (Optional, number/radial charts only) Type of submetric display: "plain", "change", "delta"
        color: string             # (Optional) Custom color for this metric's series (e.g., hex code or Tailwind color)
        show_label: bool          # (Optional) Whether to show the data label for this metric
    pivot_by: [string]       # (Optional) List of columns to pivot by
    show_labels: bool        # (Optional, default: true)
    chart_config:            # (Optional) Chart configuration
      show_legend: bool      # (Optional) Whether to show the chart legend (default: false)
      show_labels: bool      # (Optional) Whether to show labels on the chart (default: false)
      fill_donut: bool       # (Optional, pie charts only) Whether to fill the donut chart (default: false)
      is_stacked: bool       # (Optional, pie/bar/vertical_bar charts) Whether to stack elements (default: false)
      line_type: string      # (Optional, line/composed charts) "linear", "monotone", "step", "natural"
      fill_area: bool        # (Optional, line charts only) Whether to fill the area under the line
      custom_chart_type: str # (Optional, custom charts only) Custom chart type identifier
      sub_expression: string # (Optional, number/radial charts) Sub-expression for metric calculation
      page_size: int         # (Optional, data_table charts) Number of rows per page
      layout: string         # (Optional, bar/vertical_bar charts) "horizontal" or "vertical"
      hide_expression: string # (Optional, all chart types) JavaScript expression to conditionally hide the chart based on data

Composed Chart Example

- type: composed
  name: top_products_composed
  title: Top Performing Products
  description: Top 10 products by revenue
  query: |
    SELECT
      ProductName as product,
      SUM(OrderLineTotalAmount) as revenue,
      AVG(OrderLineTotalAmount) as avg_revenue
    FROM consolidated_sales_df_299ceb
    WHERE 1=1
    {% if region_filter is defined %}
    AND CustomerRegion = '{{ region_filter }}'
    {% endif %}
    {% if product_group_filter is defined %}
    AND ProductGroup = '{{ product_group_filter }}'
    {% endif %}
    GROUP BY ProductName
    ORDER BY revenue DESC
    LIMIT 10;
  axis:
    - name: left
    - name: right
      position: right
  dimensions:
    - name: product
      label: Product
  metrics:
    - name: revenue
      label: Revenue
      axis_name: "left"
      composed_type: "bar"
      format: "$0,0.00"
    - name: avg_revenue
      label: "Average Revenue"
      axis_name: "right"
      composed_type: "line"
      format: "0,0[.]00 $"

Example: Bar Chart with Click-to-Filter

type: bar
name: sales_by_country
title: Sales by Country
query: SELECT country, sum(amount) as total FROM sales GROUP BY country
axis:
  - name: left
dimensions:
  - name: country
    label: Country
    affected_filter: country_filter
metrics:
  - name: total
    label: Total Sales

Example: Dynamic Chart with Chart Inputs

Chart inputs allow users to modify the query dynamically using interactive controls like dropdowns.

Static Options

type: bar
name: top_by_revenue
title: Top 10 by Revenue
chart_inputs:
  - type: dropdown
    name: group_by_column
    label: Group By
    default: Product
    options:
      - Product
      - Customer
query: |
  SELECT
    {% if group_by_column == 'Product' %}
    ProductName as group,
    {% else %}
    CustomerName as group,
    {% endif %}
    SUM(OrderLineTotalAmount) as revenue
  FROM consolidated_sales_df
  WHERE 1=1
  {% if date_from is defined %}
  AND OrderDate >= '{{ date_from }}'
  {% endif %}
  {% if date_to is defined %}
  AND OrderDate <= '{{ date_to }}'
  {% endif %}
  {% if region_filter is defined and region_filter != 'all' %}
  AND CustomerRegion = '{{ region_filter }}'
  {% endif %}
  {% if group_by_column == 'Product' %}
  GROUP BY ProductName
  {% else %}
  GROUP BY CustomerName
  {% endif %}
  ORDER BY revenue DESC
  LIMIT 10
axis:
  - name: left
    format: "$0,0"
dimensions:
  - name: group
    label: Group
metrics:
  - name: revenue
    label: Revenue
    format: "$0,0.00"
    axis_name: left

Dynamic Options

Chart inputs can also fetch their dropdown options dynamically from database queries. This enables data-driven dropdowns and cascading input scenarios where one input’s value affects another input’s options.

type: bar
name: sales_by_region
title: Sales by Region
chart_inputs:
  - type: dropdown
    name: country
    label: Select Country
    default: USA
    options:
      - USA
      - Canada
      - UK
  - type: dropdown
    name: region
    label: Select Region
    options_query: "SELECT DISTINCT region FROM sales_data WHERE country = '{{ country }}' ORDER BY region"
query: |
  SELECT
    region,
    SUM(amount) as total_sales
  FROM sales_data
  WHERE country = '{{ country }}'
  AND region = '{{ region }}'
  GROUP BY region
dimensions:
  - name: region
    label: Region
metrics:
  - name: total_sales
    label: Total Sales
    format: "$0,0.00"

Chart inputs work with all chart types and seamlessly integrate with Jinja templating, allowing you to create highly dynamic and interactive visualizations.

Key Features:

Filter-Dependent Options: Chart input options can change based on active tab-level filters
Cascading Inputs: One input’s value can affect another input’s available options
Template Variables: Use both tab-level filters and other chart input values in your options_query

You cannot define both options and options_query for the same chart input. Use options for static lists and options_query for dynamic, data-driven dropdowns.

Example: Pie Chart with Click-to-Filter

type: pie
name: sales_distribution
title: Sales Distribution
query: SELECT category, sum(amount) as total FROM sales GROUP BY category
dimensions:
  - name: category
    label: Category
    affected_filter: category_filter
metrics:
  - name: total
    label: Total Sales

Example: Heatmap Chart

type: heatmap
name: sales_heatmap
title: Sales Heatmap by Region and Product
query: |
  SELECT region, product, sum(amount) as total
  FROM sales
  GROUP BY region, product
dimensions:
  - name: region
    label: Region
  - name: product
    label: Product
metrics:
  - name: total
    label: Total Sales
    format: "$0,0.00"

Heatmap charts require exactly 2 dimensions and at least 1 metric.

Example: Conditional Chart Visibility

You can conditionally hide charts based on the query result data using hide_expression. The expression receives the data array and should return true to hide the chart:

type: bar
name: sales_by_category
title: Sales by Category
query: SELECT category, sum(amount) as total FROM sales GROUP BY category
dimensions:
  - name: category
    label: Category
metrics:
  - name: total
    label: Total Sales
chart_config:
  hide_expression: "(data) => {return data.length < 5}"

In this example, the chart will only be displayed if the query returns 5 or more rows. This is useful for hiding charts when there’s insufficient data to display meaningfully.

The hide_expression is a JavaScript function that receives the data parameter (an array of query results) and must return a boolean value. Return true to hide the chart, or false to show it.

Example: Scatter Plot Chart

type: scatter
name: example_scatter_chart
title: Sales Profiles by Countries
query: |
  SELECT
    CustomerCountry,
    ROUND(AVG(UnitPrice), 2) as avg_unit_price,
    ROUND(SUM(InvoiceTotalAmount), 2) as total_invoice_count
  FROM consolidated_sales_df_9cb4a3
  GROUP BY CustomerCountry
  ORDER BY total_invoice_count DESC
  LIMIT 20;
dimensions:
  - name: CustomerCountry
    label: "Country"
metrics:
  - name: avg_unit_price
    label: Average Unit Price
  - name: total_invoice_count
    label: Total Invoice Count
chart_config:
  show_labels: true

Scatter plot charts require exactly 1 dimension and 2-3 metrics. The first metric is plotted on the x-axis, the second metric on the y-axis, and an optional third metric can be used for additional visualization properties.

Example: Custom Chart

type: custom
name: custom_visualization
title: Custom Visualization
query: SELECT * FROM custom_data
chart_config:
  custom_chart_type: my_custom_chart

Variables

variables:
  - name: string             # Variable name
    type: string             # `string`, `integer`, `float`, `boolean`, `date`

Filters

filters:
  - type: string             # `text`, `number`, `dropdown`, `date`
    name: string             # Filter name
    title: string            # Display label
    affected_variable: str   # Variable updated
    default_value: any       # (Optional) Default value
    multiple: bool           # (Optional, dropdown only) Enable multi-select (default: false)
    options:                 # (For dropdown)
      type: string           # `static` or `sql`
      values:                # (For static)
        - value: string
          label: string
      query: string          # (For sql)
      use_input: bool        # (Optional, sql only) Pass the dropdown's search text to the query as `search_term` (default: false)
    placeholder: string      # (Optional)

Texts

Markdown text components allow adding rich textual content to your apps.

texts:
  - name: string             # Unique text component name
    title: string            # (Optional) Display title
    content: string          # Markdown content (supports GFM and fenced code blocks)

Layout usage with a text item:

layout:
  tabs:
    - name: overview
      title: Overview
      items:
        - type: text          # Layout item type must be 'text'
          name: overview_md   # References a component from components.texts
          span: 12            # (Optional) Grid span 1–12
          height: 240         # (Optional) Height in px; enables scroll when set

Text layout item properties:

Attribute	Type	Description
`type`	string	Must be `text`
`name`	string	References a component from `components.texts`
`span`	int	(Optional) Grid span (width)
`height`	int	(Optional) Height in px; when set, content becomes scrollable

Widgets

Custom React (TSX) components rendered inside the app grid. See Components: Widgets for the component contract.

widgets:
  - name: string             # Unique widget name
    title: string            # Widget title (metadata; the widget renders its own header)
    description: string      # (Optional) Description
    source_type: string      # `inline` (default) or `file`
    source: string           # (Required for `inline`) Component TSX source
    file: string             # (Required for `file`) Path to a .tsx file in the project repository
    query: string            # (Optional) SQL query (Jinja supported); result is passed as the `data` prop

Widget attributes:

Attribute	Type	Description
`name`	string	Unique widget name, referenced from the layout
`title`	string	Widget title (metadata only — no header is rendered for you)
`description`	string	(Optional) Widget description
`source_type`	string	`inline` or `file` (default: `inline`)
`source`	string	(Required for `inline`, forbidden for `file`) Component TSX source
`file`	string	(Required for `file`, forbidden for `inline`) Path to a `.tsx` file in the repository
`query`	string	(Optional) SQL query whose rows are passed to the component as the `data` prop

Layout usage with a widget item:

layout:
  tabs:
    - name: overview
      title: Overview
      items:
        - type: widget         # Layout item type must be 'widget'
          name: my_widget      # References a component from components.widgets
          span: 6              # (Optional) Grid span 1–12
          height: 320          # (Optional) Height in px; enables scroll when set

Widget layout item properties:

Attribute	Type	Description
`type`	string	Must be `widget`
`name`	string	References a component from `components.widgets`
`span`	int	(Optional) Grid span (width)
`height`	int	(Optional) Height in px; when set, content becomes scrollable

Example:

widgets:
  - name: top_customers_widget
    title: Top Customers
    source_type: file
    file: widgets/TopCustomers.tsx
    query: |
      SELECT CustomerName as customer, SUM(OrderLineTotalAmount) as revenue
      FROM consolidated_sales_df
      WHERE 1=1
      {% if region_filter is defined %}
      AND CustomerRegion = '{{ region_filter }}'
      {% endif %}
      GROUP BY CustomerName
      ORDER BY revenue DESC
      LIMIT 5

The component must export default a React component. It receives data (query rows, or an empty array when no query is set) and appContext (filters, setFilter, theme). Only react and @datazone/widget-sdk can be imported.

Item Lists

List-style chart type. Each row supports icon, title, description, optional timestamp, and badge. Query result fields:

Field	Type	Description
`icon`	string	(Optional) Lucide icon name (default: `Mail`)
`icon_color`	string	(Optional) Tailwind color class (default: `text-blue-600`)
`title`	string	Primary title
`description`	string	Secondary text
`timestamp`	string	(Optional) Right-aligned timestamp
`badge_text`	string	(Optional) Badge label
`badge_variant`	string	(Optional) Badge variant: `neutral`, `success`, `warning`, `error`

charts:
  - type: item_list
    name: my_item_list
    title: "Items"
    query: |
      SELECT
        icon,              -- e.g., 'Mail'
        icon_color,        -- e.g., 'text-blue-600'
        title,
        description,
        updated_at AS timestamp,
        status AS badge_text,
        CASE
          WHEN status = 'Success' THEN 'success'
          WHEN status = 'Pending' THEN 'warning'
          WHEN status = 'Error' THEN 'error'
          ELSE 'neutral'
        END AS badge_variant
      FROM my_items
      ORDER BY updated_at DESC
      LIMIT 20;

Example:

config:
  cache: true
  cache_ttl: 3600
  llm_instruction: "You are a helpful assistant."
  hide_filters: false
  hide_header: false
  chart_export_enabled: true
  style:
    theme: "teal"

Example

app:
  name: Billing Collection Dashboard
  description: Dashboard showing billing and collection metrics
  config:
    cache: true
    cache_ttl: 3600
    chart_export_enabled: true
    style:
      theme: "blue"
  layout:
    tabs:
      - name: billing_data
        title: Billing Data
        filters: [product_group, membership_type_filter]
        items:
          - type: chart-group
            name: kpis
            span: 12
            entities:
              - type: chart
                name: total_count
                span: 4
          - type: chart
            name: detailed_table
            span: 12
  components:
    charts:
      - type: number
        name: total_count
        title: Total Row Count
        query: select count(*) as row_count from sales_data;
        metrics:
          - name: row_count
            label: Row Count
    variables:
      - name: order_date
        type: date
    filters:
      - type: date
        name: order_date_filter
        title: Order Date Filter
        affected_variable: order_date
        default_value: '2024-04-01'

Example for Number Chart Metrics

charts:
  - type: number
    name: completed_tasks
    title: Completed Tasks
    query: SELECT count(*) as completed FROM tasks WHERE status = 'done';
    metrics:
      - name: completed
        label: Completed Tasks
        icon: check
        icon_variant: success
        format: "0"

number charts support 1-2 metrics: one main metric and optionally one secondary metric (submetric)
radial charts support the same metric configuration as number charts
Use submetric_name and submetric_type to display a secondary metric below the main value
submetric_type options: plain (just show the value), change (show percentage change), delta (show difference)
For a full list of Lucide icons, see lucide.dev/icons
icon_variant must be one of: default, neutral, success, warning, error

Value Format Strings

All Intelligent App value formattings use Numeral.js formatting strings. Examples:

Number	Format	Result
10000	`0,0.0000`	10,000.0000
10000.23	`0,0`	10,000
10000.23	`+0,0`	+10,000
-10000	`0,0.0`	-10,000.0
1000.234	`$0,0.00`	$1,000.23
1000.2	`0,0[.]00 $`	1,000.20 $
1001	`$ 0,0[.]00`	$ 1,001
1230974	`($ 0.00 a)`	$ 1.23 m
100	`0b`	100B
1024	`0b`	1KB
2048	`0 ib`	2 KiB
3072	`0.0 b`	3.1 KB
7884486213	`0.00b`	7.88GB
1	`0%`	100%
0.974878234	`0.000%`	97.488%
0.43	`(0.000 %)`	43.000 %
25	`00:00:00`	0:00:25
63846	`00:00:00`	17:44:06

Notes

All attributes are case-sensitive.
Use Jinja templating for dynamic queries.
See Query Manipulation for advanced usage.
For more examples, see example_intelligent_app.yaml.

Get Started

Reference

Deployment

Tutorial

YAML Reference

Intelligent App YAML Reference

Top-Level Structure

`config` Section

Style Configuration

Custom Style Attributes

`layout` Section

Layout Items

`components` Section

Charts

Composed Chart Example

Example: Bar Chart with Click-to-Filter

Example: Dynamic Chart with Chart Inputs

Static Options

Dynamic Options

Example: Pie Chart with Click-to-Filter

Example: Heatmap Chart

Example: Conditional Chart Visibility

Example: Scatter Plot Chart

Example: Custom Chart

Variables

Filters

Texts

Widgets

Item Lists

Example

Example for Number Chart Metrics

Value Format Strings

Notes

​Intelligent App YAML Reference

​Top-Level Structure

​config Section

​Style Configuration

​Custom Style Attributes

​layout Section

​Layout Items

​components Section

​Charts

​Composed Chart Example

​Example: Bar Chart with Click-to-Filter

​Example: Dynamic Chart with Chart Inputs

Static Options

Dynamic Options

​Example: Pie Chart with Click-to-Filter

​Example: Heatmap Chart

​Example: Conditional Chart Visibility

​Example: Scatter Plot Chart

​Example: Custom Chart

​Variables

​Filters

​Texts

​Widgets

​Item Lists

​Example

​Example for Number Chart Metrics

​Value Format Strings

​Notes

Intelligent App YAML Reference

Top-Level Structure

`config` Section

Style Configuration

Custom Style Attributes

`layout` Section

Layout Items

`components` Section

Charts

Composed Chart Example

Example: Bar Chart with Click-to-Filter

Example: Dynamic Chart with Chart Inputs

Example: Pie Chart with Click-to-Filter

Example: Heatmap Chart

Example: Conditional Chart Visibility

Example: Scatter Plot Chart

Example: Custom Chart

Variables

Filters

Texts

Widgets

Item Lists

Example

Example for Number Chart Metrics

Value Format Strings

Notes
